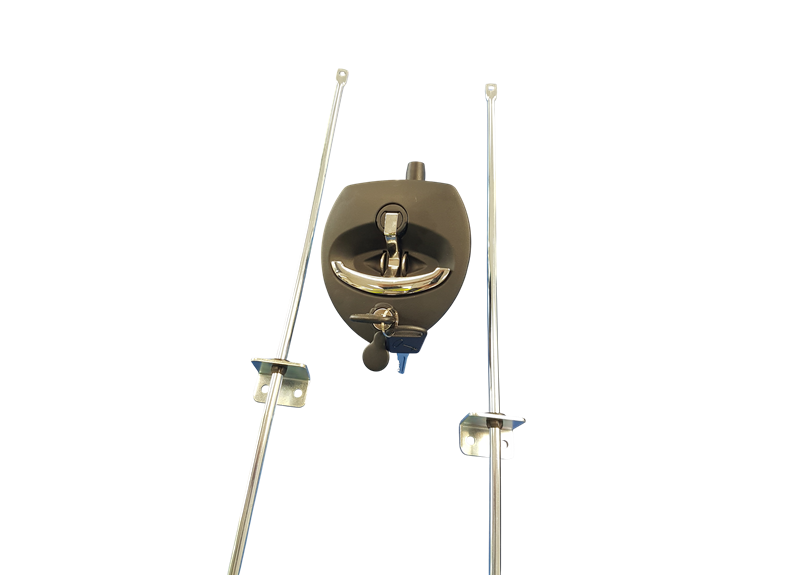

Industrilas Vector Drop T-Handle Stud Fixing Adjustable Three Point Roller Cam, 2 Rods & 2 Guides

Information

Unique designed recessed lock. Rear fixing cast in stud mounts. Silver handle. Zinc steel shaft with 180 degree adjustable three point roller cam, lockable with an extra 8mm pad lock loop feature. 4mm compression stroke for a tight seal. Adjustable cam 10mm - 60mm. Universal left and right. The Vector T Handle is weather resistant and designed for use on tool boxes, automotive, ute hard tops, diesel generators, trailers, caravans and many more applications. Face Size 120mm wide x 131mm high, Cam extends further underneath the face. Housing made from Glass reinforced polyamide (PA6). Includes 2 x vector 8mm rod for 2 or 3 point cams. Rod has a stamped end with eyelet (6.3mm). 1200mm long from centre of eyelet. Zinc plated steel. 2 x rod guide bushed for 8mm rode, 25mm hole centres, 24mm wide bottom plate. Rod hole centre 26mm. Zinc plated steel.CAD file on request.
