Drawerslide 227kg 508mm Locking Both sides

Information

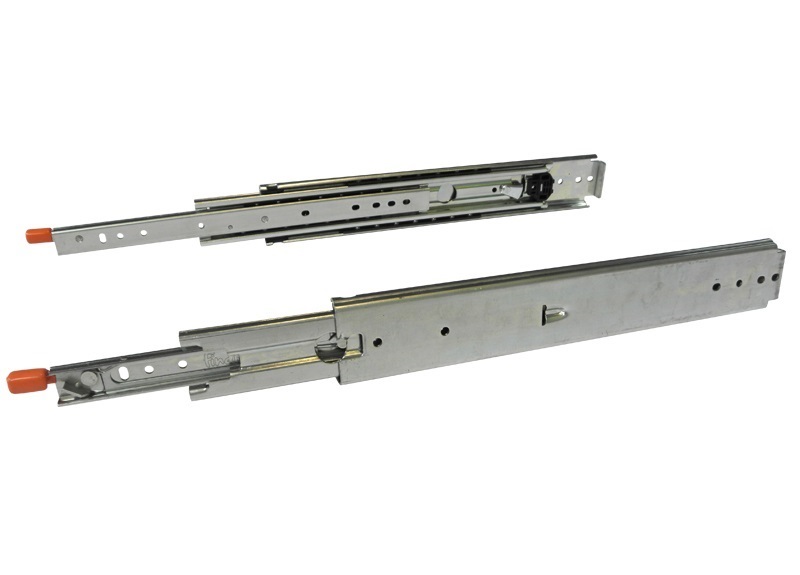

Quality pair of LOCKING 227kg 508mm plus 27mm for the locking tab, closed length zinc plated steel drawerslides. 100% extension. 500mm closed 1000mm extended. 227kg slides are 76mm high, 19.3mm thick. Locking leaver adds 25mm to overall length. 227kg 500mm drawer slides maximum load of 225kgs when open. Weight range 125kg and 227kg. In locking and non locking versions. Duraslide. When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.Depending on substrate, stainless steel 'flat head' hex screws with NY-lock nuts or stainless steel rivets are recommended. There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
